The Dark Power Pro 11 is be quiet!’s most advanced high-end power supply. With an effective continuous power output of 1000 W and a convenient overclocking key that allows switching between four independent and one massive 12 V rail, it offers maximum power reserves for even the most demanding applications. The specially developed Silent Wings 3 fan and a variety of other improvements in decoupling and ventilation, such as the funnel-shaped air intake on the housing, ensure an almost inaudibly quiet operation. With advanced full-bridge topology, the Dark Power Pro 11 achieves an efficiency of up to 94 percent and is certified with an 80PLUS Platinum rating.
The Dark Power Pro 11 1000 W is 80PLUS Platinum certified and reaches an efficiency of up to 94%. This is a real advantage for any high-end system, as it reduces energy consumption, improves cooling, and achieves quieter operation. The standby consumption is below 0.1 watts.
The decoupled, nearly inaudible Silent Wings 3 135 mm fan is equipped with many high-quality features, such as a flow-optimized design of the fan blades, an advanced fluid-dynamic bearing, and a 6-pole motor. These features ensure minimal vibrations, impressive longevity, and low power consumption.
The funnel-shaped design of the fan intake of the Dark Power Pro 11 1000 W allows for increased airflow, ultimately leading to improved cooling performance.
Form factor | ATX |
80 PLUS certificate | Platinum |
Modularity | Partially modular cable management |
Internal connection options | 15-pin S-ATA (10x), 20+4 PIN ATX power connector (1x), 3-pin (4x), 4-pin floppy (2x), 4-pin Molex (7x), 4+4-pin 12V (1x), 6-pin PCI Express (1x), 6+2-pin PCI Express (8x), 8-pin PCI Express (1x) |
Item number | 5313309 |
Manufacturer | be quiet! |
Category | Power Supply PC |
Manufacturer no. | BN254 |
Release date | 1.7.2015 |
External links |
Colour | Black |
Exact colour description | Black |
Form factor | ATX |
Efficiency | 93 % |
80 PLUS certificate | Platinum |
Modularity | Partially modular cable management |
Internal connection options | 15-pin S-ATA (10x), 20+4 PIN ATX power connector (1x), 3-pin (4x), 4-pin floppy (2x), 4-pin Molex (7x), 4+4-pin 12V (1x), 6-pin PCI Express (1x), 6+2-pin PCI Express (8x), 8-pin PCI Express (1x) |
Cooling method | Active cooling |
Number of fans | 1 x |
Fan diameter | 135 mm |
Power protection features | EIA, OCP, OPP, OTP, OVP, SCP |
Power | 1000 W |
CO₂-Emission | |
Climate contribution |

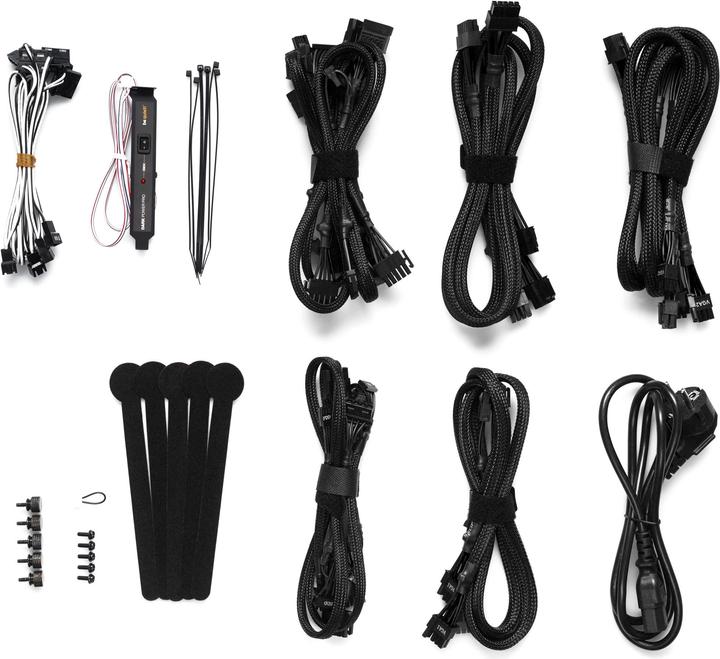

Scope of delivery | Bag, Cable ties, Installation material, Modular Cables, Power cord, User manual, Velcro fastener |
Length | 19.30 cm |
Width | 15 cm |
Height | 8.60 cm |
Weight | 2380 g |
Length | 34.70 cm |
Width | 27.30 cm |
Height | 12 cm |
Weight | 4.60 kg |
