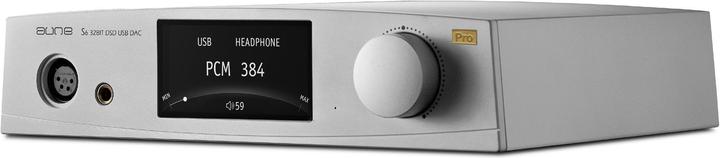

Aune S6 Pro

The Aune S6 Pro is a USB DAC and headphone amplifier featuring balanced and single-ended outputs. It is equipped with the AKM AK4497 high-end DAC chip and supports USB input signals of up to 32 bit/768 kHz and DSD512. The S6 Pro delivers a natural, musical sound and reproduces every detail with excellent dynamics, as evidenced by its impressive THD+N value of 0.0005%.

With high-end DAC capabilities, the S6 Pro offers USB, coaxial, AES, and optical inputs, along with line and balanced outputs, making it suitable for various applications. It can be used in both balanced and single-ended configurations, featuring appropriate connection options. Balanced connections can be made via 4-pin XLR, while single-ended connections are available through RCA or a 6.35 mm jack. The device also supports connections to iPhones, Android smartphones, or music players to significantly enhance the sound quality of these playback devices.

The large, easy-to-read display and multifunctional rotary wheel facilitate user-friendly operation of the S6 Pro.

Key features include:

• USB DAC with support for DSD512 and input signals up to 32 bit/768 kHz
• Headphone amplifier with balanced 4-pin XLR and single-ended 6.35 mm headphone jacks
• USB input connectivity for iPhone, Android smartphones, or music players (cable not included)
• DAC: AKM AK4497

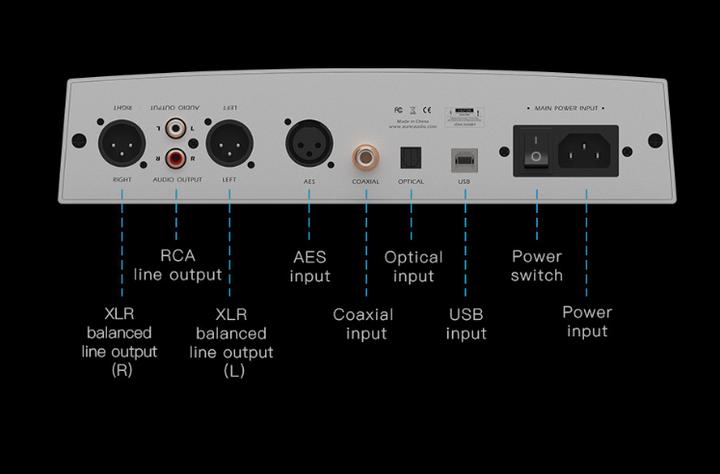

• Connectors: 4-pin XLR balanced headphone jack, 6.35 mm headphone jack, XLR balanced line output (L/R), RCA line output (L/R), AES input, coaxial input, optical input, USB input
• Sampling rates: USB: 32 bit/768 kHz, up to maximum DSD512; Coaxial: 24 bit/384 kHz, up to maximum DoP128; Optical: 24 bit/192 kHz, up to maximum DoP64; AES: 24 bit/384 kHz, up to maximum DoP128
• Line output: Frequency response: 20 Hz ~ 20 kHz; Dynamic range: 119 dB; SNR: 118 dB; THD+N (@1kHz): 0.0005%; Crosstalk: -132 dB; Output level: 2 Vrms (RCA) / 4 Vrms (XLR)
• Output Power: XLR Balanced: 405 mW @ 300 ohms; 6.35 mm Single-Ended: 120 mW @ 300 ohms.
