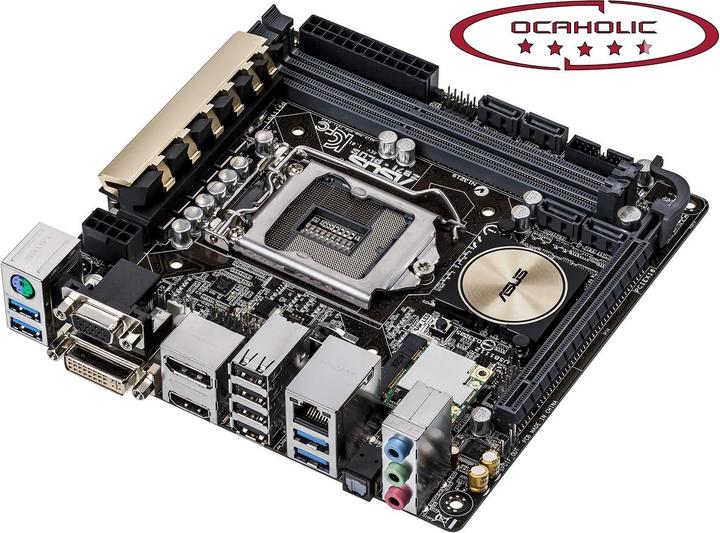

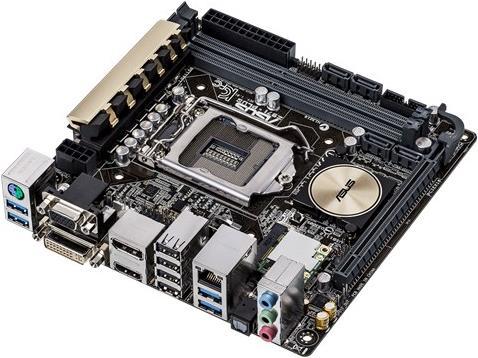

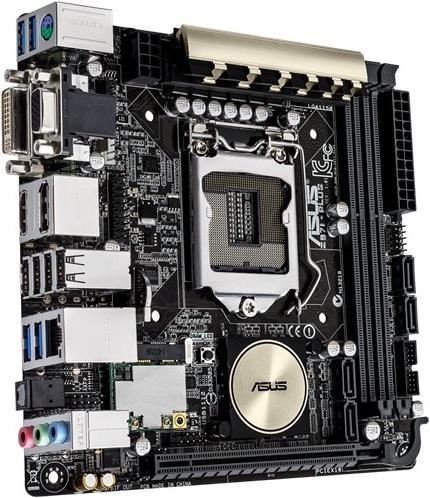

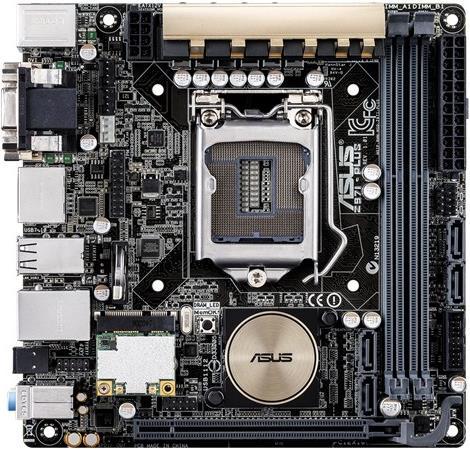

ASUS Z97i-Plus

LGA 1150, Intel Z97, Mini-ITX
3Ratings
BrandMore from ASUS
Currently out of stock

Product details

The Z97i-Plus is a Mini-ITX motherboard designed for the 4th generation of Intel Core processors. It offers a variety of features that make it an excellent choice for compact and powerful systems. With an LGA 1150 socket, it supports both Core i5 and Core i7 processors and allows for a maximum RAM capacity of 16 GB. The motherboard is equipped with an Intel Z97 chipset, which ensures high performance and stability. Support for DDR3 RAM and the ability to overclock up to 3200 MHz provide additional flexibility for users looking to optimize their system's performance. Additionally, the Z97i-Plus features integrated network connections, including Gigabit Ethernet and wireless transmission options such as Bluetooth and Wi-Fi, enhancing connectivity and facilitating use in various environments.

  • Supports 4th generation Intel Core i5 and i7 processors
  • Maximum RAM capacity of 16 GB with DDR3 RAM
  • Integrated Gigabit Ethernet and Bluetooth connectivity
  • Intel Z97 chipset for improved performance and stability
  • Mini-ITX form factor for compact design.

Key specifications

Processor family
Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen
Memory type
DDR3-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth
Mainboard features
Front panel audio connector
Item number
2580142

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB0IU0-M0EAY0
Release date
13.5.2014
External links
Manufacturer's site (en)

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1150
Chipset
Intel Z97
Mainboard features
Front panel audio connector
Operating system compatibility
Windows
BIOS type
UEFI AMI
Wireless transmission
Bluetooth
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac

Processor

Processor family
Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
16 GB
Memory chip
DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800)
Max. RAM OC
3200 MHz
Supported memory speed
1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz
Memory type
DDR3-RAM
RAM buffer
Unbuffered

Graphics properties

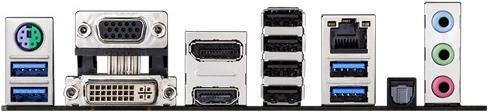

Video connections
HDMI (1x)

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I218V
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC892
Audio channel
8.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (4x)
Number of fan connector
3

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

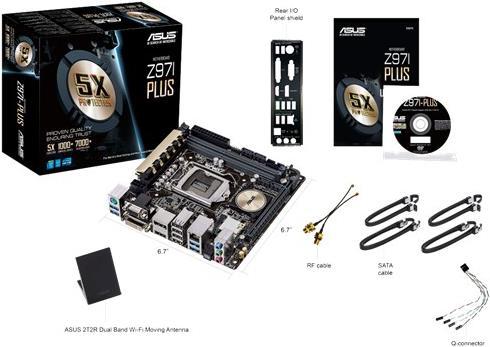

Scope of delivery

Scope of delivery
S-ATA cable, User manual

Product dimensions

Length
170 mm
Width
170 mm
Height
170 mm
