ASUS ProArt X670E-Creator Wifi

AM5, AMD X670E, ATX
free shipping
31Ratings
BrandMore from ASUS
tonight with flash delivery
to check if flash delivery is available to you.

Product details

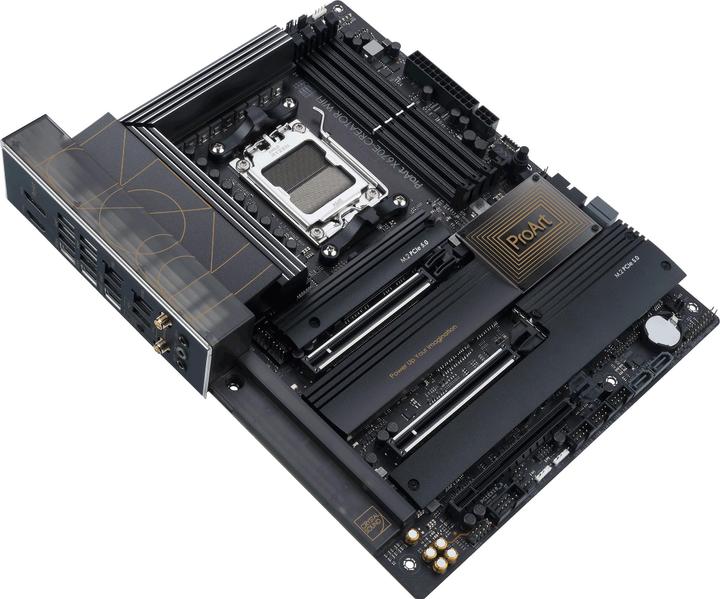

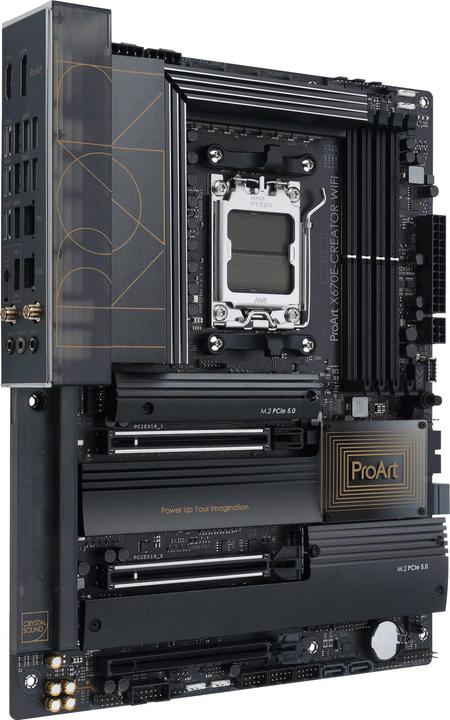

The ProArt X670E-Creator WiFi features an AMD X670 Ryzen AM5 ATX motherboard designed for content creation, equipped with PCIe 5.0, DDR5 support, two USB4 ports, 10 GB and 2.5 GB Ethernet, WiFi 6E, four M.2 slots, and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support. The AM5 socket is ready for AMD Ryzen 7000 series CPUs. It offers robust performance with 16+2 teamed power stages, a ProCool power connector, high-quality alloy chokes, and durable capacitors. Overclocking technologies include AI Overclocking, Dynamic OC-Switcher, and Ryzen Core Flex. The DIY-friendly design features a PCIe slot Q-Release, M.2 Q-Latch, SafeSlot, SafeDIMM, a pre-mounted I/O shield, BIOS FlashBack, and Q-Connector. ProArt provides more: two-way AI noise cancellation for clear online communication and the ProArt Creator Hub with CreationFirst for streamlined system control. Enhanced security features include USB port management, software blacklisting, and Regedit enable/disable control via ASUS Control Center Express.

Key specifications

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 7th Gen, Ryzen 9 7th Gen, Ryzen 9th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Wireless transmission
Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Item number
22459199

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1B90-M0EAY0
Release date
16.8.2022
Sales rank in Category Motherboards
32 of 972

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X670E
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Wi-Fi
Wi-Fi standard
Wi-Fi 6E / 802.11az

Processor

Processor family
Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 7th Gen, Ryzen 9 7th Gen, Ryzen 9th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5, DDR5-4800, DDR5-5200, DDR5-5600, DDR5-5800, DDR5-6000, DDR5-6200, DDR5-6400, DDR5-6600, DDR5-6800, DDR5-7000, DDR5-7200, DDR5-7600, DDR5-8000
Max. RAM OC
8000 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
On-Die ECC, Unbuffered

Graphics properties

Video connections

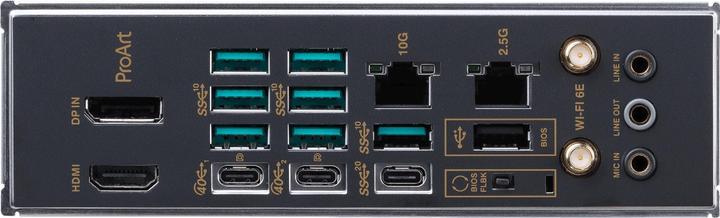

DisplayPort (1x), HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 10 Gigabit Ethernet (1x), RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Intel, Marvell
Max. port speed
10 Gbit/s

Audio

Chip
Realtek S1220A
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
5
Number of fan connector
5

Further connections

USB ports
USB-A, USB-C

Power supply

Power connectors
24-pin ATX, 2x 8-pin ATX 12V, 6-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

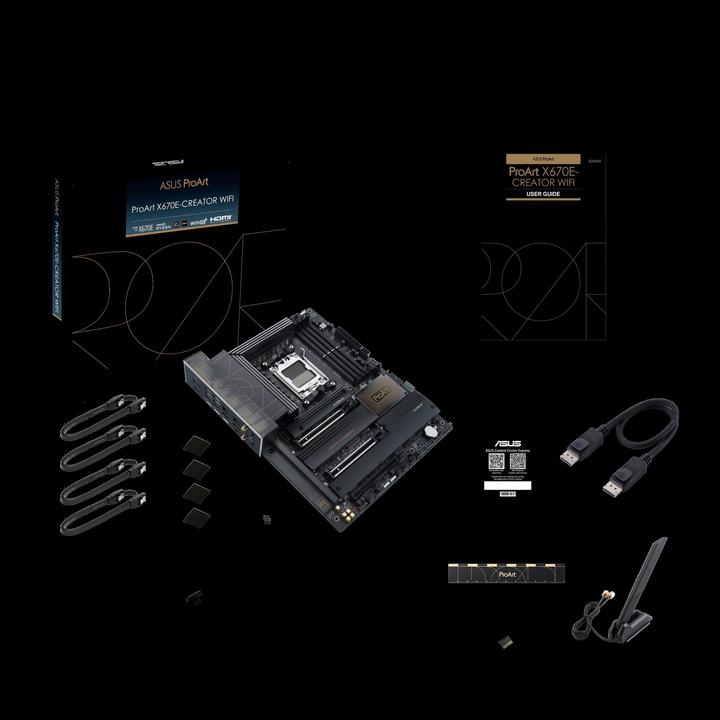

DisplayPort cable, Sata Cables, WiFi antenna

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm

Package dimensions

Length
35.60 cm
Width
28.10 cm
Height
7.90 cm
Weight
1.81 kg
