ASUS Pro Q570M-C/CSM

LGA 1200, Intel Q570, mATX
free shipping
Ratings
BrandMore from ASUS
Delivered between Sat, 3.5. and Wed, 7.5.
More than 10 items in stock at supplier

Product details

Intel LGA 1200 socket: Ready for 11th generation Intel Core processors. ASUS-exclusive Self-Recovery BIOS technology for automatic BIOS recovery from a verified backup. Supports an SMBUS header connected to a DASH LAN for remote IT management. ASUS COM-Debug header for more efficient troubleshooting. Event logging to capture and manage detailed system information. Innovative moisture-resistant coating to protect the motherboard from extreme environmental conditions. Commercial BIOS Kit for faster and more efficient customizations. ASUS Control Center Express (ACCE) to simplify IT endpoint management. Ultra-fast connectivity: PCIe 4.0, Intel 1 Gbps Ethernet, and front header for USB 3.2 Gen 1 Type-C.

Key specifications

Processor family
Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium Gold
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (2x), S-ATA III (6x)
Wireless transmission
Wi-Fi
Mainboard features
Parallel header, Serial header, Trusted Platform Module
Item number
16225409

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1700-M0EAYC
Release date
30.6.2021
Sales rank in Category Motherboards
203 of 972

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel Q570
Mainboard features
Parallel header, Serial header, Trusted Platform Module
Operating system compatibility
Windows 10
BIOS type
UEFI
Wireless transmission
Wi-Fi

Processor

Processor family
Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of pins
184 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
2666 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz
Transfer rate
133240 MT/s
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

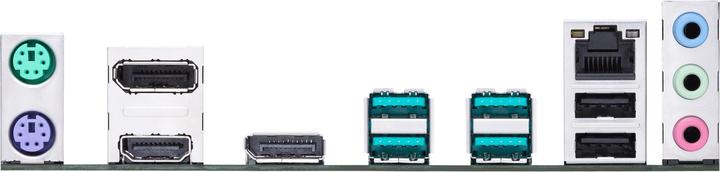

Video connections
DisplayPort (2x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.0

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I219-LM
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 (2x), S-ATA III (6x)
Expansion slot
PCI Express x1 (3x), PCI Express x16 (3x)
PCI express version (max.)
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

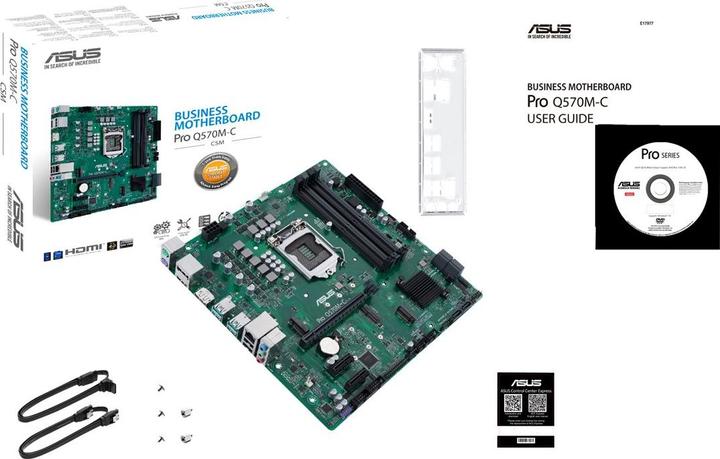

Scope of delivery

Scope of delivery
Cables supplied: SATA

Product dimensions

Length
244 mm
Width
244 mm
Height
51 mm
Weight
634 g

Package dimensions

Length
27.70 cm
Width
26.80 cm
Height
5.70 cm
Weight
849 g
