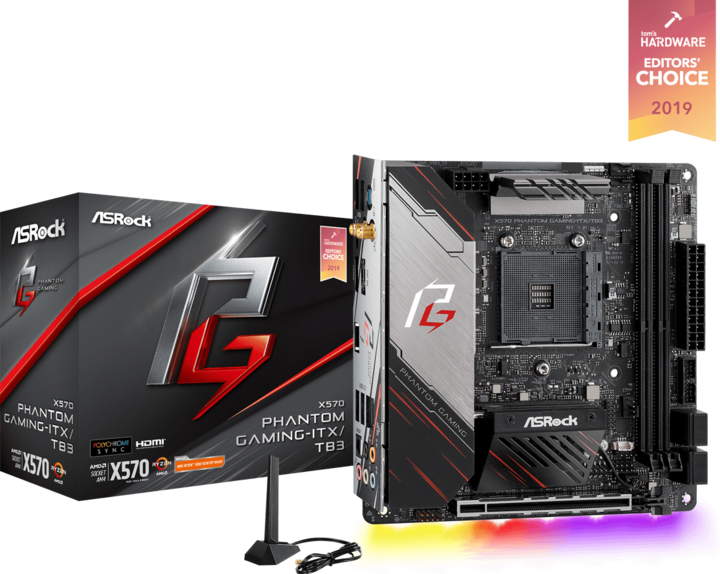

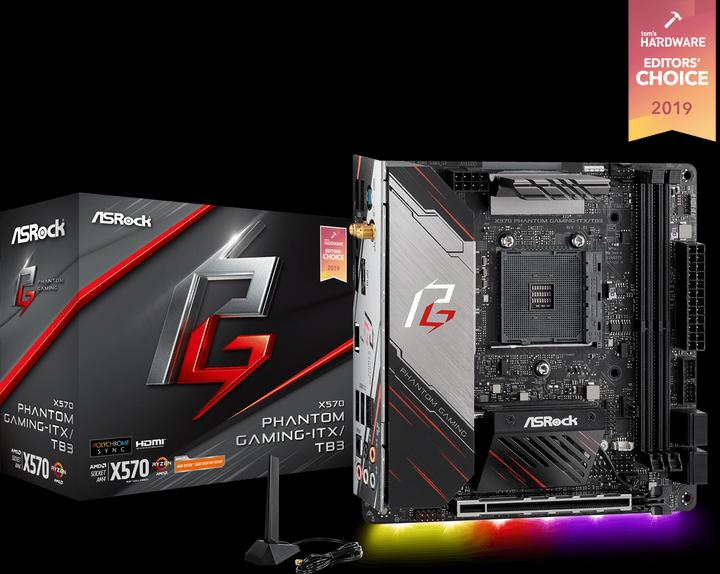

AsRock X570 Phantom Gaming ITX/TB3
AM4, AMD X570, Mini-ITXCurrently out of stock
Product details

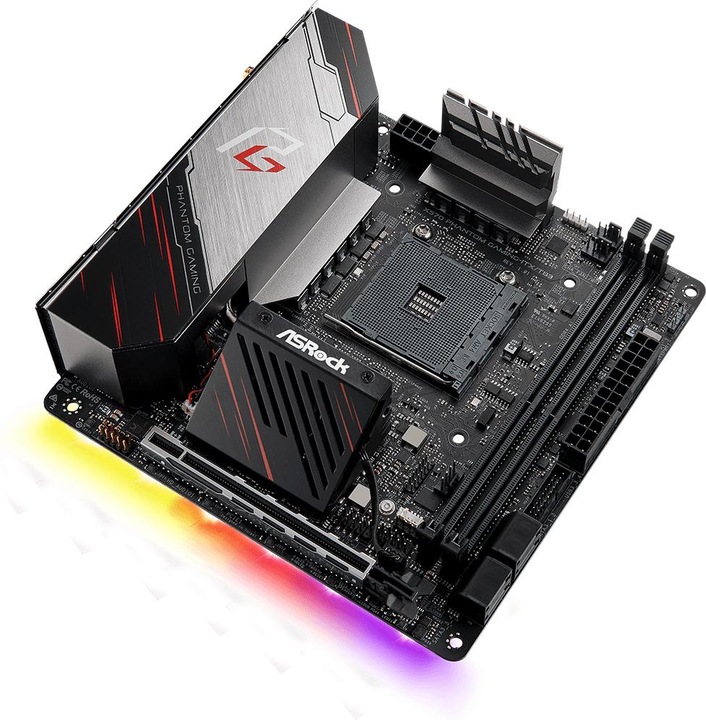

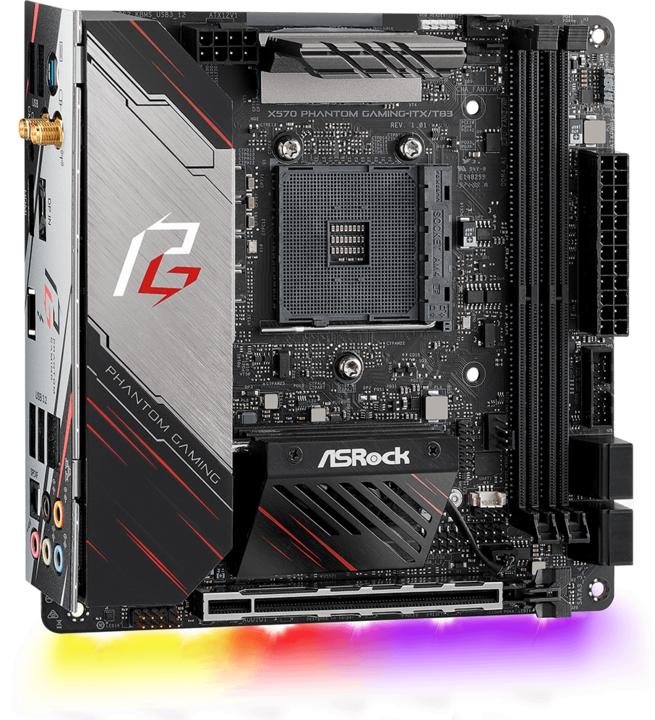

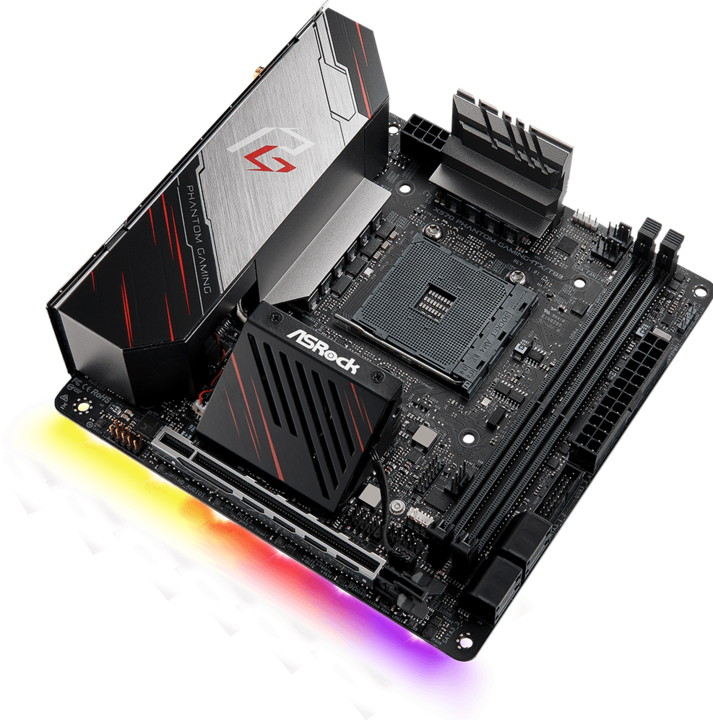

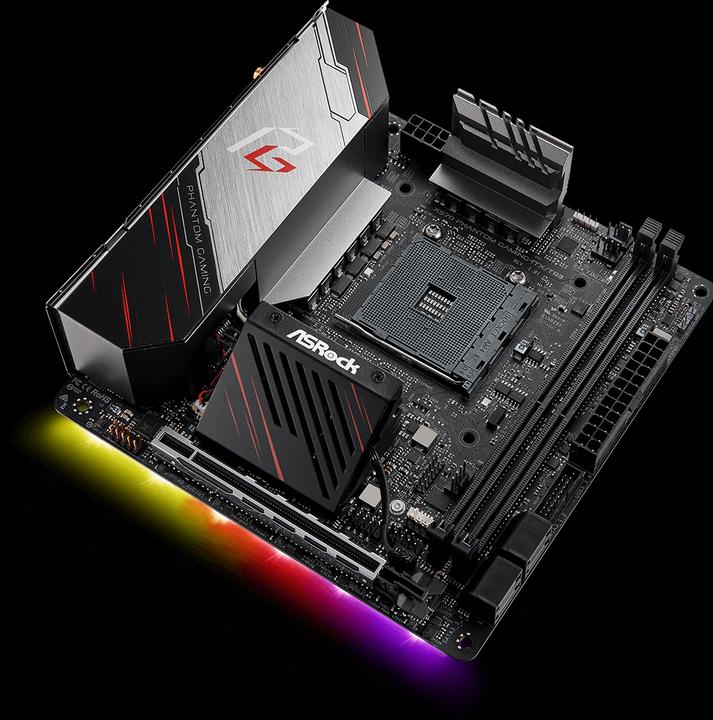

The ASRock X570 Phantom Gaming-ITX/TB3 is a powerful Mini-ITX motherboard designed for use with AMD Ryzen series processors. It supports the AM4 socket and is equipped with the AMD X570 chipset, which offers high performance and efficiency. With a maximum RAM capacity of 64 GB and support for DDR4 SDRAM, this motherboard allows for a flexible and powerful configuration for various applications, from gaming to creative work. The integrated ports include multiple USB options, including USB-C, as well as HDMI and DisplayPort for video output. Additionally, the motherboard provides a variety of networking options, including Gigabit LAN, Wi-Fi, and Bluetooth, to ensure seamless connectivity. Support for M.2 and SATA III storage drives enables fast data transfer and flexible storage options.
- Supports AMD Ryzen 2000 and 3000 Series processors
- Maximum RAM capacity of 64 GB with DDR4 SDRAM
- Integrated networking options: Gigabit LAN, Wi-Fi 5, and Bluetooth
- Variety of USB ports, including USB-C and USB 3.2 Gen 2
- Supports RAID levels 0, 1, and 10 for enhanced data security and performance.
Processor family | Ryzen 3 2nd Gen, Ryzen 3 3rd Gen, Ryzen 5 2nd Gen, Ryzen 5 3rd Gen, Ryzen 7 2nd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 PCIe (1x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, RGB header |
Documents | |
Item number | 12183057 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBB10-A0UAYZ |
Release date | 15.10.2019 |
Form factor | Mini-ITX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, RGB header |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3 2nd Gen, Ryzen 3 3rd Gen, Ryzen 5 2nd Gen, Ryzen 5 3rd Gen, Ryzen 7 2nd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2933, DDR4-3200 |
Max. RAM OC | 4533 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4300 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code |

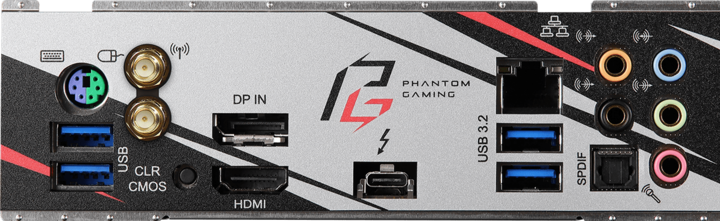

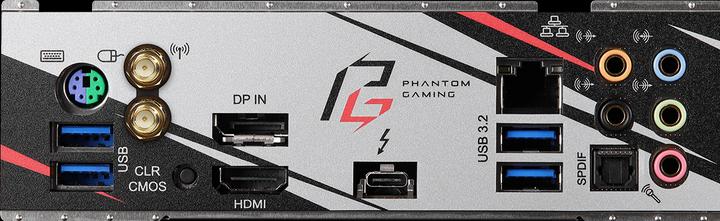

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Intel I211AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x) |
Internal connection options | M.2 PCIe (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 170 mm |
Width | 170 mm |
Weight | 1350 g |
Length | 23.50 cm |
Width | 18.60 cm |
Height | 9.50 cm |
Weight | 1.27 kg |
Specifications may include unverified machine translations.
