AsRock NUC Box-1260P
Intel Core i7-1260Pfree shipping
Delivered between Thu, 8.5. and Sat, 10.5.
Only 1 item in stock at supplier
Only 1 item in stock at supplier
Product details

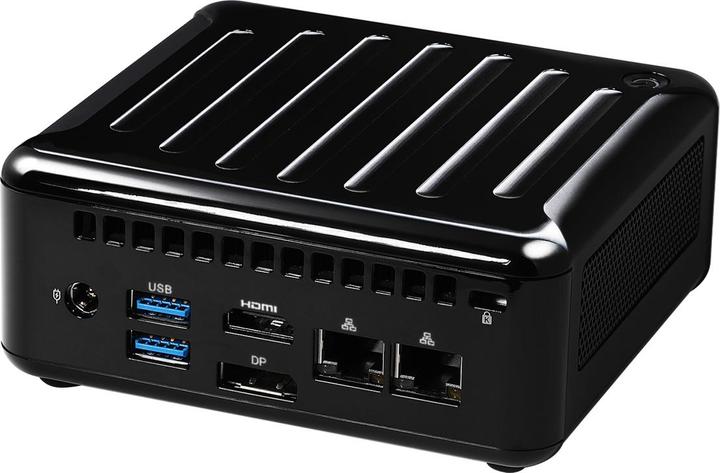

The ASRock NUC BOX-1260P is a powerful barebone PC designed for demanding applications and workstation environments. Equipped with a 12th generation Intel Core i7-1260P processor, this compact system delivers excellent performance for multitasking and compute-intensive tasks. The NUC BOX-1260P supports up to 64 GB of DDR4 RAM and allows for the installation of both HDD and SSD storage drives, providing a flexible and customizable storage solution. With two Ethernet LAN ports and support for Wi-Fi 6E (802.11ax), the NUC BOX-1260P is ideal for fast and reliable network connections. Its compact form factor and a variety of connectivity options, including HDMI, USB 3.2, and Thunderbolt 4, make it a versatile choice for various applications, whether in the office or home office.
- Supports up to 64 GB of DDR4 RAM with two memory slots
- Two RJ-45 Ethernet ports for enhanced network connections
- Integrated Intel Iris Graphics for basic graphics performance
- Compatible with M.2 and SATA III storage drives
- Supports Wi-Fi 6E and Bluetooth 5.2 for modern wireless connectivity.
Number of processor cores | 12 -Core |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Network connections | RJ45 (2x) |
Video connections | DisplayPort (3x), HDMI (1x) |
Memory type | DDR4-RAM |
USB ports | Thunderbolt 4, USB-C |
Item number | 23581818 |
Manufacturer | AsRock |
Category | Barebones |
Manufacturer no. | 90PXG8Y0-00EAY100 |
Release date | 6.7.2022 |
Sales rank in Category Barebones | 40 of 546 |
May include power adapter | Yes |
Design | Small Form |
Processor type | Intel Core i7-1260P |
Clock frequency | 3.20 GHz |
Number of processors | 1 x |
Number of processor cores | 12 -Core |
Number of threads | 16 |
Max. turbo clock rate | 4.70 GHz |
Max. TDP | 90 W |
Processor properties | Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-3200 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Data storage controller | Intel I225-V |
USB ports | Thunderbolt 4, USB-C |
Exact USB ports | Thunderbolt 4 (1x), USB-C 3.2 Gen 2 (1x) |
Network connections | RJ45 (2x) |
Max. port speed | 2500 Mbit/s |
Connectivity | WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Bluetooth version | 5.2 |
Video connections | DisplayPort (3x), HDMI (1x) |
Audio outputs | Audio Jack |
Power | 90 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power adapter, VESA bracket |
Weight | 1000 g |
Width | 110 mm |
Length | 117.50 mm |
Height | 47.85 mm |
Length | 23 cm |
Width | 14 cm |
Height | 12 cm |
Weight | 1.45 kg |
Specifications may include unverified machine translations.
