Alphacool Core RX 7900XTX Merc 310 with backplate

The core product series from Alphacool is characterized by high quality, outstanding performance, and a uniform, functional design language. The core of this cooler is the copper component, which is milled from a single piece of copper along with the end terminal. The fine finish, combined with the hard and resistant chrome plating of the entire copper radiator, meets the highest quality standards. The two integrated G1/4" brass threads, left in chrome, visually stand out from the terminal and are key elements of the new design language evident in all products of the Core series.

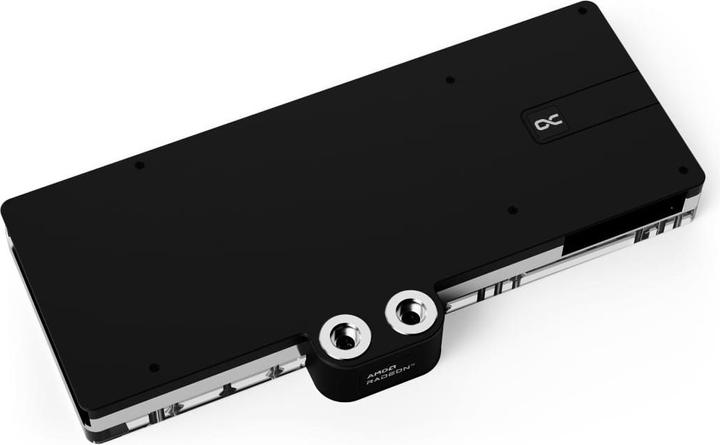

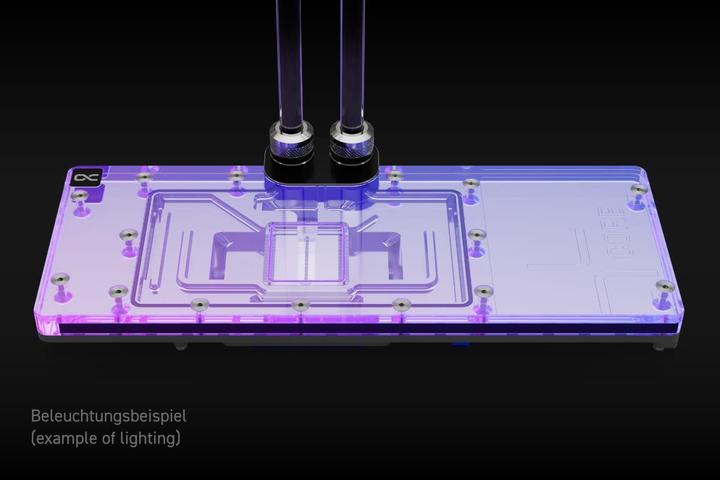

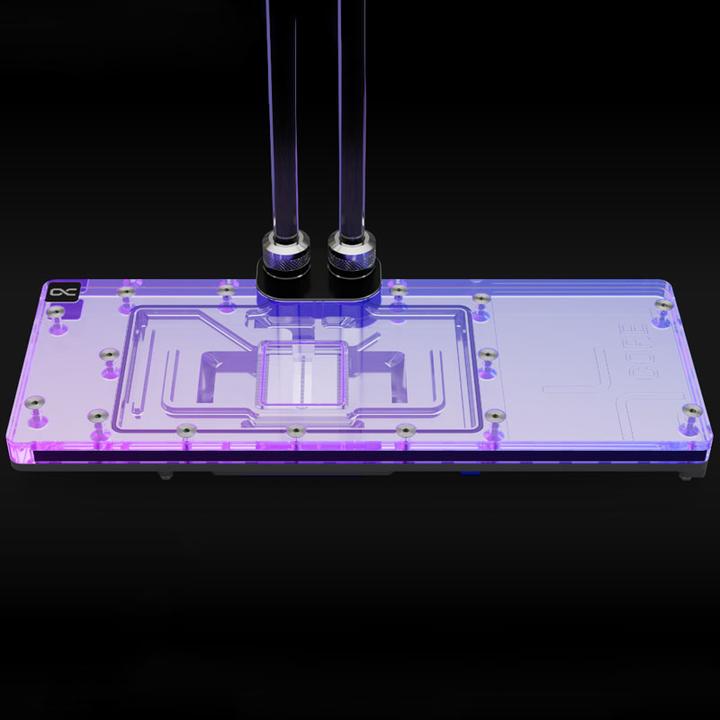

The aluminum backplate, adapted to the design, forms a cohesive unit with the terminal and offers a clear and homogeneous appearance on the back of the radiator. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and effectively. The technical development is evident in the water supply to the nozzle plate and the optimization of the jet plate itself, which was completely redesigned based on numerous simulations and practical tests in collaboration with board partners.

The fin thickness and spacing have been adjusted, the cooling surface has been enlarged, and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft heat-conducting pads, with a rating of up to 7 W/mK, adapt perfectly to even the smallest tolerances.

Technical data:
Radiator dimensions (L x W x H): 289.60 x 134.80 x 32.20 mm
Material radiator bottom: chrome-plated copper
Material radiator top: acrylic
Connections: 4 x G1/4"
Thickness radiator bottom: 11.3 mm
Thickness radiator fins: 0.4 mm
Spacing radiator fins: 0.4 mm
Backplate dimensions (L x W x H): 289.60 x 111.80 x 5 mm
Material: aluminum
Color: black.
