Akasa Copper Core Cooler for Intel LGA1700 up to 125W TDP. pushpin

The features of the Akasa AK-CC6606BP01 CPU cooler at a glance:

• High-performance cooler for CPUs with the LGA1700 socket
• Height of 63.2 mm
• PWM control with a speed range of 500 to 3,000 RPM
• Suitable for CPUs with a TDP of up to 125 W

Compact CPU cooler for any system of your choice

The Akasa AK-CC6606BP01 is a powerful CPU cooler designed for Intel's Alder Lake processors (LGA1700). With a height of 63.2 mm, it fits well in more compact systems. The aluminum cooler also looks stylish, making it a great choice for cases where the interior is visible.

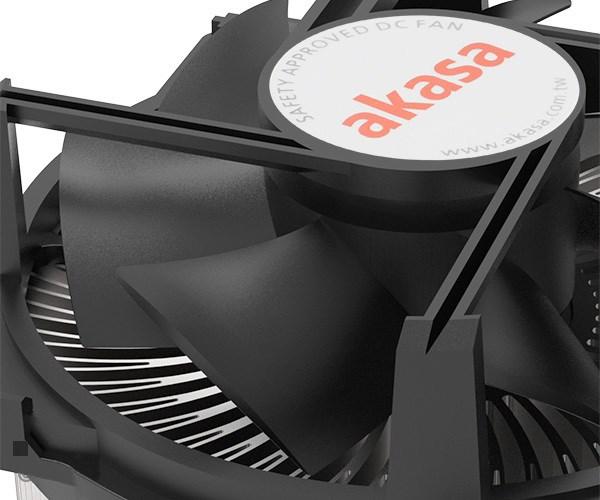

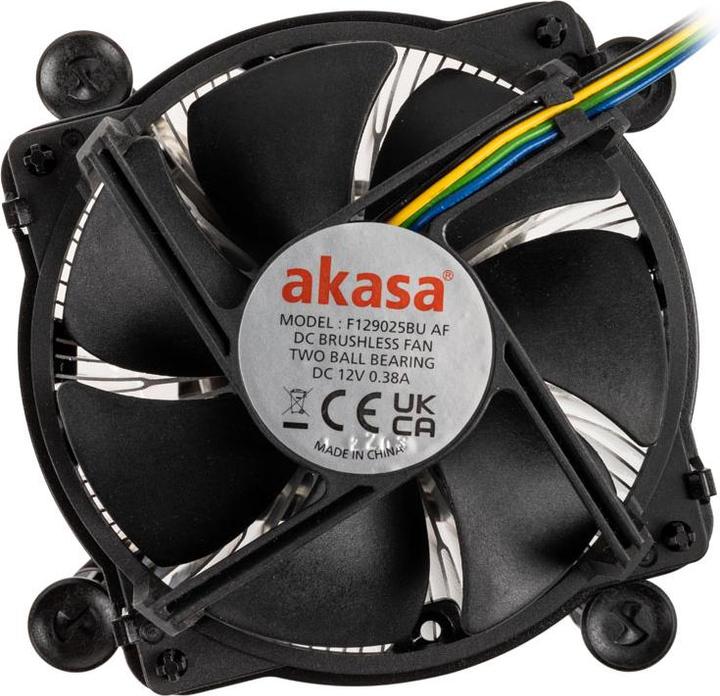

At the heart of the Akasa AK-CC6606BP01 is a 90 mm diameter fan, which is controlled via PWM signals in a range between 500 and 3,000 RPM.

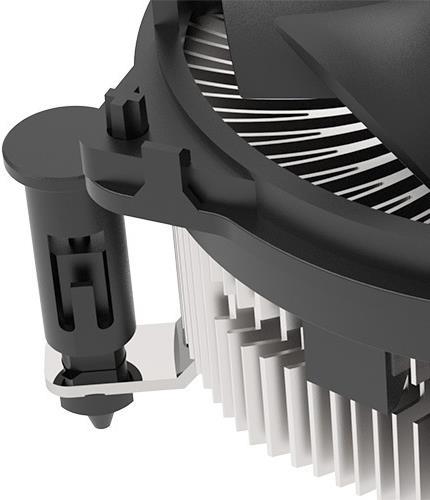

This CPU cooler is compatible with Intel's LGA1700 socket and connects to the motherboard via a 4-pin PWM connector. Its use of standard connectors ensures high compatibility with other products. Mounting materials and thermal paste are included in the package. Installation is straightforward and tool-free using push pins.

Technical details:

• Dimensions: 94.8 x 63.2 mm x 94.8 mm (W x H x D)
• Material: Aluminum (heat sink, fins), plastic
• Fan: 90 x 25 mm (W x H)

Noise level: max. 36 dB(A)
Static pressure: 3.81 mmH2O
Airflow: max 69.49 m³/h
Connection: 1x 4-Pin PWM
Speed: 500 - 3,000 RPM
Voltage: 12V
Current: 0.38A
Lifespan: 80,000 h

• Connection: 4-Pin PWM
• Compatibility: Intel socket: 1700.
