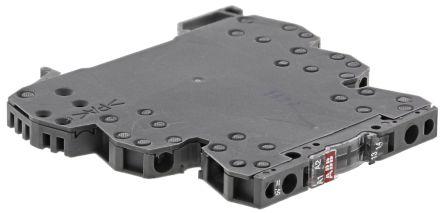

ABB Optocoupler, R600, 5-12V ac/dc, 2 A

Maximum forward voltage = 12 V
Maximum input current = 9 mA
Isolation voltage = 2.5 kVrms
Mounting type = DIN rail
Minimum operating temperature = -20 °C
Maximum operating temperature = +70 °C
Length = 70 mm
Width = 6 mm
Depth = 75 mm
Operating temperature range = -20 → +70 °C

Optocoupler series R600 for DIN rail mounting. In addition to voltage and current, galvanic isolation is also possible, requiring an interface through devices that provide these functions as well as the transmission of input and output logic signals. The R600 series of relays and optocouplers makes this possible. These devices offer a variety of voltage and current settings as well as input and output isolation. Screw terminal optocouplers measuring 6 mm with input voltage: From 5 to 250 Vac/dc, voltage switching range: From 5 to 58 Vdc, from 20 to 400 Vac, current switching range: From 1 mA to 5 A, surge protection: Operational display via a green LED.
