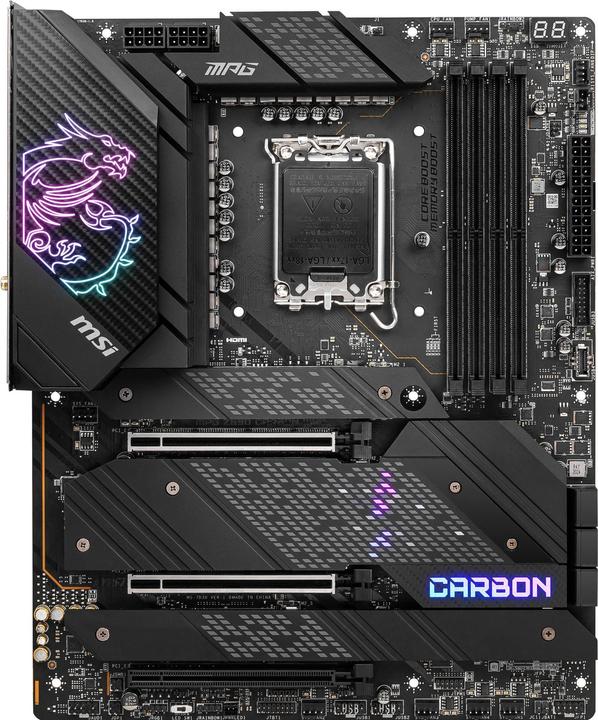

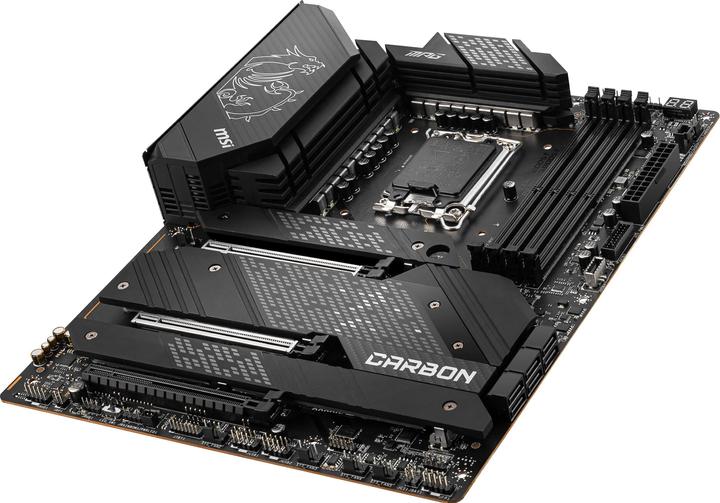

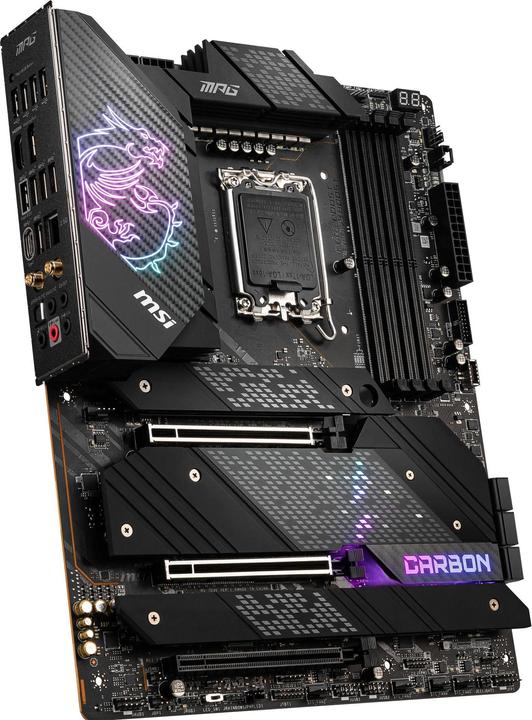

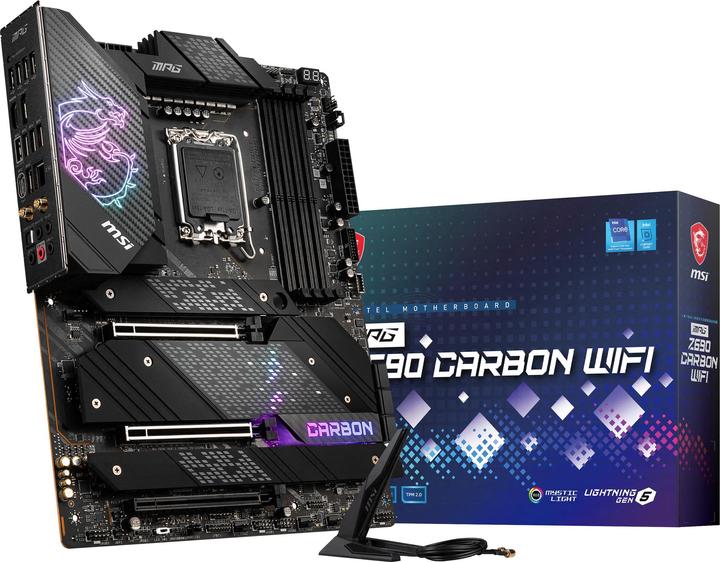

MSI MPG Z690 Carbon Wifi
LGA 1700, Intel Z690 (DDR5), ATXAktuell nicht lieferbar
Produktinformationen
ATX-Mainboard mit Z690-Chipsatz von Intel, unterstützt PCI-Express 5.0, geeignet für DDR5-RAM, mit 2,5-Gbit-LAN, WLAN und Bluetooth. Die MPG-Serie hilft Anwendern dabei, intelligenter zu arbeiten, indem sie eine effiziente und produktive Erfahrung bietet. Mit stabiler Funktionalität und hochwertiger Montage bieten die Motherboards der MPG-Serie nicht nur optimierte professionelle Arbeitsabläufe, sondern auch weniger Fehlersuche und Langlebigkeit.
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen, Pentium Gold |
Arbeitsspeichertyp | DDR5-RAM |
Anzahl Speichermodule (RAM) | 4 x |
Interne Anschlussmöglichkeiten | M.2 PCIe (5x), S-ATA III (6x) |
Kabellose Übertragung | Bluetooth, WLAN |
Mainboard Features | Front Panel Audiostecker |
Artikelnummer | 17253028 |
Formfaktor | ATX |
Sockel | LGA 1700 |
Chipsatz | Intel Z690 (DDR5) |
Mainboard Features | Front Panel Audiostecker |
Betriebssystem Kompatibilität | Windows 10 |
BIOS Typ | Ami |
Kabellose Übertragung | Bluetooth, WLAN |
WLAN Standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen, Pentium Gold |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Pins | 288 x |
Anzahl Speichermodule (RAM) | 4 x |
Max. Speicher (RAM) | 128 GB |
Arbeitsspeicher Chip | DDR5-6666 |
Max. RAM OC | 6666 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 4000 MHz, 4800 MHz, 5600 MHz |
Arbeitsspeichertyp | DDR5-RAM |
RAM-Puffer | unbuffered |

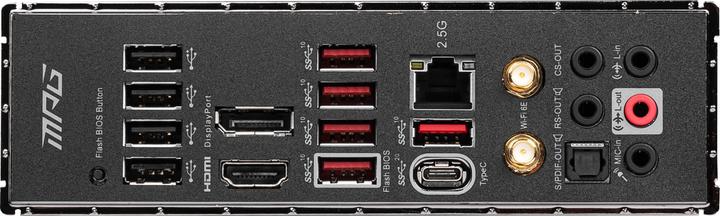

Video-Anschlüsse | DisplayPort (1x), HDMI (1x) |
Video-Anschluss Version | HDMI 2.1 |
Multi-GPU Technologie | AMD CrossFire |
Netzwerk-Anschlüsse | RJ45 (1x) |
Ethernet Controller Marke | Intel |
Ethernet Controller | Intel I225-V |
Max. Port Geschwindigkeit | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | Klinke 3.5mm (3x), Optical TOSLINK (1x) |
RAID Konfiguration | 0, 1, 10, 5 |
Interne Anschlussmöglichkeiten | M.2 PCIe (5x), S-ATA III (6x) |
Erweiterungs-Slot | PCI Express x16 (3x) |
Anzahl Lüfter Stecker | 8 |
USB-Anschlüsse | USB-A, USB-C |
Strom Anschlüsse | 24-pin ATX |
Herstellerengagement | SBTi |
CO₂-Emission | |
Klimabeitrag |
Lieferumfang | Sata Kabel |
Länge | 305 mm |
Breite | 244 mm |
Höhe | 65 mm |
Gewicht | 1000 g |
Länge | 35 cm |
Breite | 27.50 cm |
Höhe | 8 cm |
Gewicht | 2.26 kg |
